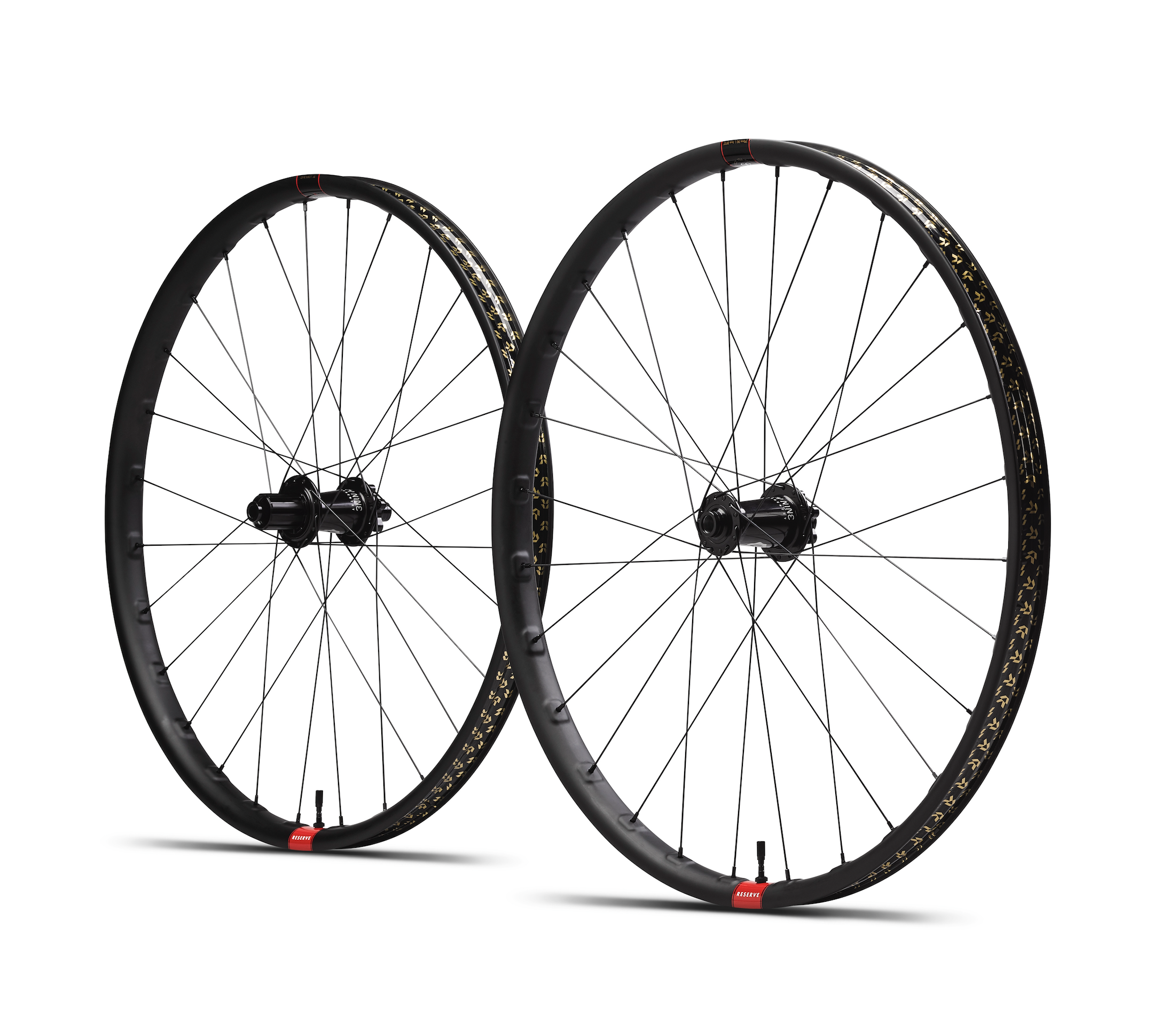

Carbon enduro wheels built for rough descents, big hits, and abuse carbon wheels shouldn’t survive. Backed by a lifetime guarantee.
Wheel Size
Hub
Freehub - Rotor

Select Hubs

£1,699.00 GBP

Added To Your Cart:

Cart
Subtotal

You May Also Like...

Reserve 30|HD

£1,699.00 GBP
Buy Now

Description

Modern trail bikes are designed to tackle anything that can be thrown at them. From cruising mellow singletrack to crushing boulder-strewn steeps, they deliver a do-everything performance that inspires the rider to go faster, more smoothly. 30|HD wheels are specially designed for trail riding and the abuse that trail bikes dish out. They feature a 30mm width for use with 2.5 tires and a redesigned inner rim bed that takes the hassle out of seating new tires.

See Full Specs

Lifetime Warranty

All Reserve wheels are built around a simple principle: we have your back. That means no rider weight limits, an industry-leading Lifetime Warranty, safe semi-hooked rim designs and comprehensive customer service.

We are riders like you and we know that breaking a wheel or damaging a Fillmore Valve can be a frustrating experience, especially when it’s keeping you from getting out on your bike. Our promise to you is that we will do our best to get you back riding as quickly as possible. It’s the reason we have made ourselves available through email, chat or by scheduling a video call. We want to be here when you need us most.

Learn more or submit a warranty claim here.

What's in the Box

  • 1x Complete wheelset
  • 34mm Reserve Rim Tape (installed)

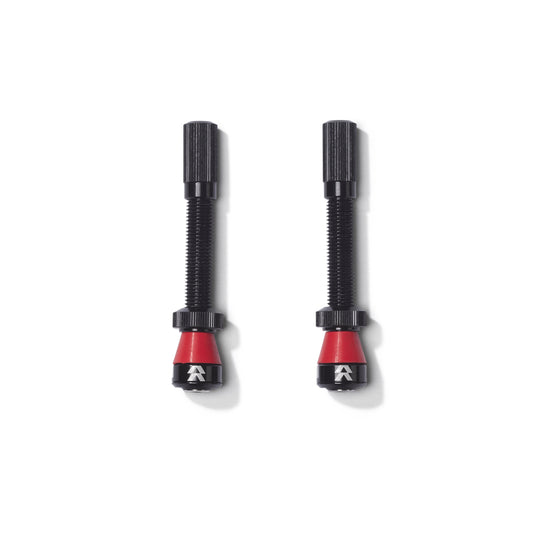

  • 2x 50mm Fillmore Tubeless Valves (un-installed)
  • User Manual

Product Safety

ASTM Classification: Condition 4

Maximum Tire Pressure: 50 psi (3.4 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

Shipping and Returns

All wheelsets ship for £5.00 and orders under £145 ship for £4.50. We aim to ship orders within 24–48 hours on business days. Once shipped, your order should arrive within 3–5 business days. Orders ship with duties paid, so there are no surprise charges at delivery. New, unridden products can be returned within 60 days. Learn more on our Shipping & Returns page.

01 Redesigned Rim Bed

02 Ride and Race Tested

03 Asymmetrical Design

01Redesigned Rim Bed02Ride and Race Tested03Asymmetrical Design

Redesigned Rim Bed

The 30|HD's redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.

Ride and Race Tested

The Reserve 30|HD is designed to be put through its paces and come out unscathed. So whether you’re sending it down your local steeps or hitting an EWS track, these are the trail bike wheels that keep delivering.

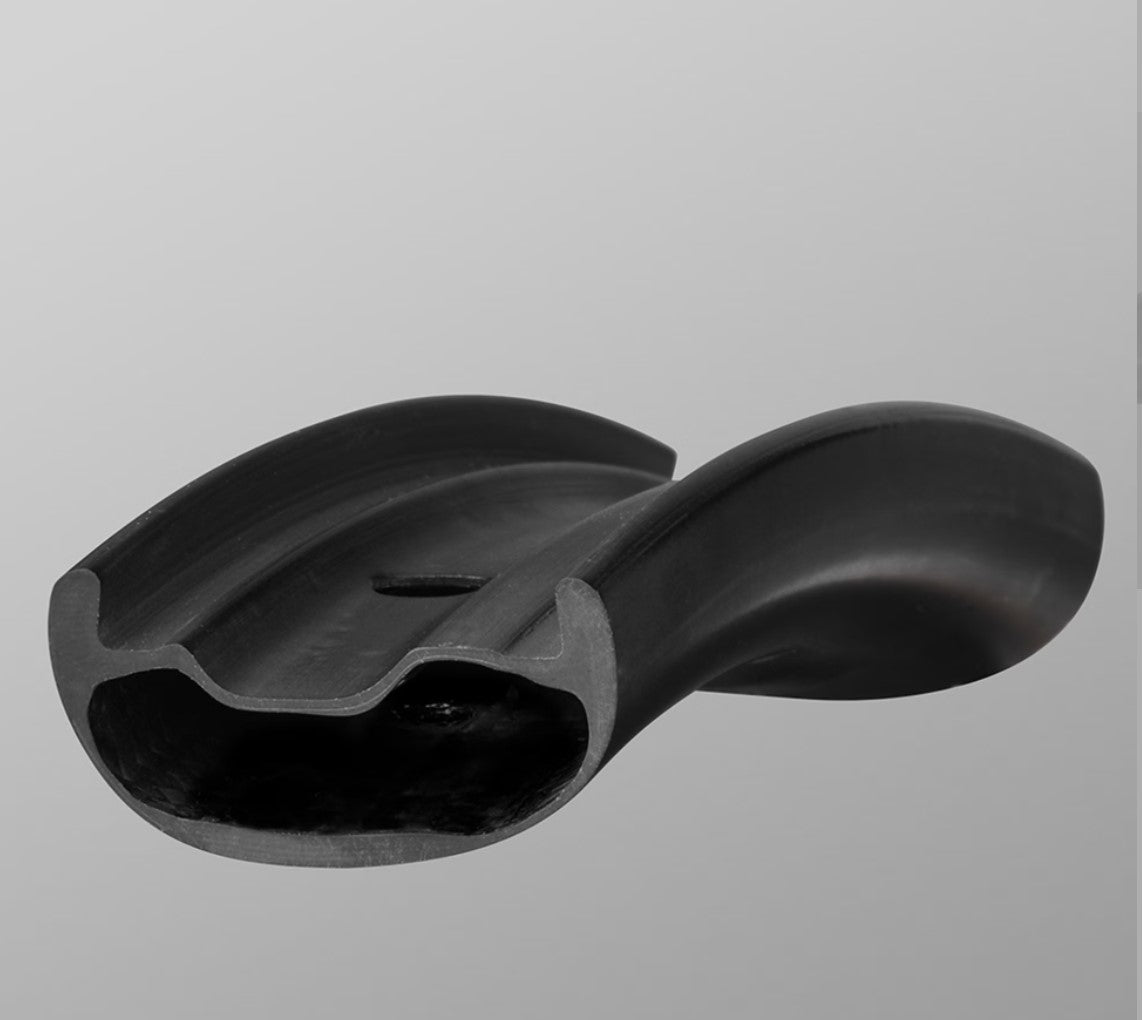

Asymmetrical Design

Asymmetrical rims, like those on the 30|HD, build stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.

Details

Wheel Size

Wheelset Weight Industry 9 Hydra - 1,829g Industry 9 1/1 - 1,861g Single Rim - 516g
Wheelset Weight Industry 9 Hydra - 1,819g Industry 9 1/1 - 1,851g Single Rim - 497g
Wheelset Weight Industry 9 Hydra - 1,826g Industry 9 1/1 - 1,860g Single Rim - 516g/497g
ERD 598
ERD 559
ERD 590F 560R
Designed For Trail, all mountain and enduro riding
Inner Width 30mm
Depth 20mm
Recommended Tire Dimensions 2.3 to 2.5
Spoke Count 28
Spokes 28x double butted spokes J-bend w/aluminum nipples
Asymmetric Offset 4mm
Hub Spacing Boost 110/148mm
Endcap Options standard
Disk Style Options 6-Bolt or Centerlock
Freehub Options Microspline or XD

FAQ

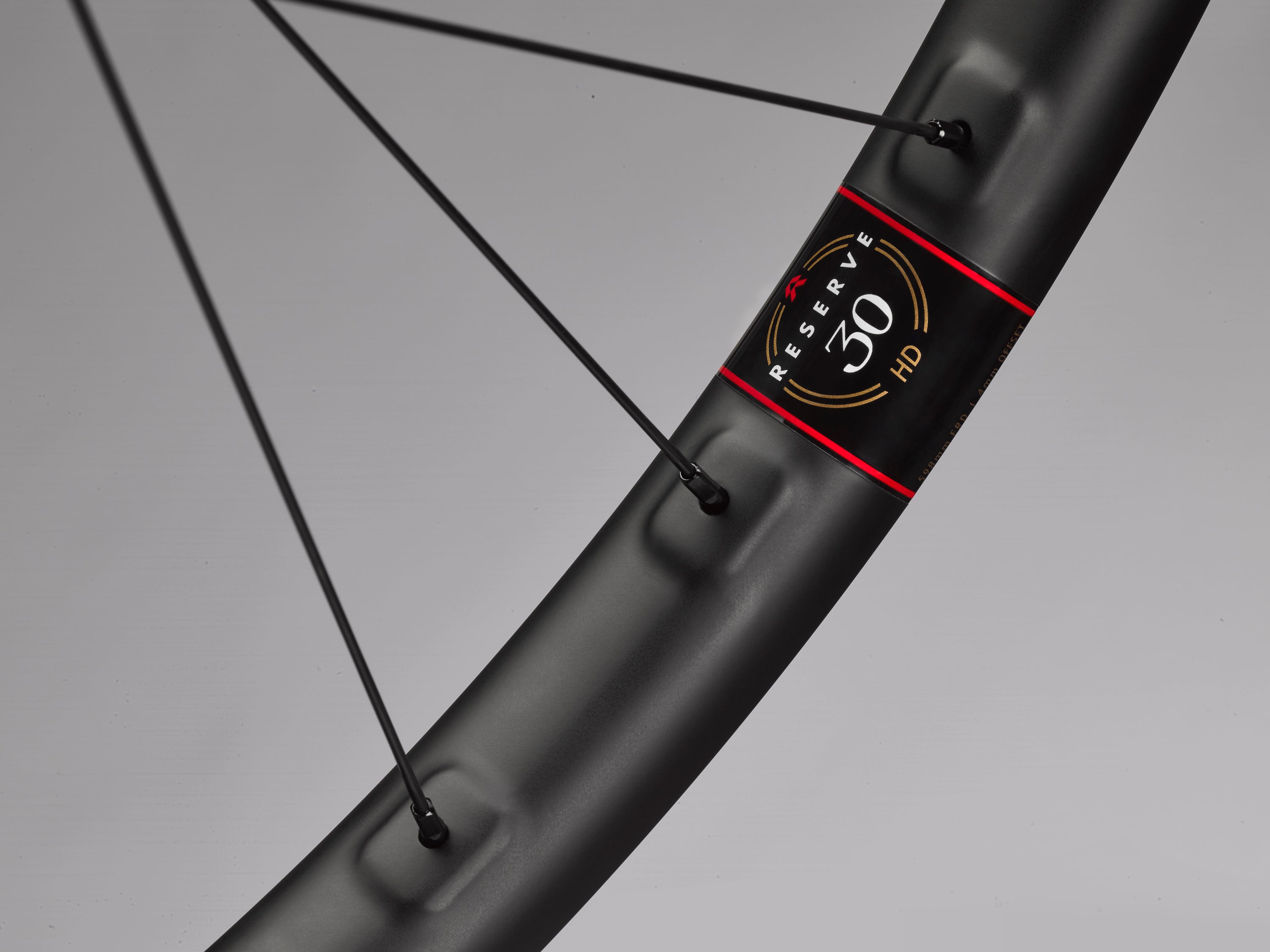

What's with the raised square-shaped area around the spokes?

That's material right where you need it. With information from testing in our carbon lab in hand, we set about determining how to build the strongest rim possible, and part of the result is the square-shaped reinforcements you can see around the spoke holes.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

We do not currently offer wheelbuilding services, but we do offer rim-only options so you can have your dream wheels built by an experienced wheelsmith.

Where can I find more tech spec information?

Click here for more tech specs information.

Looking for wheel building info?

Click here for wheel building tech sheet.

Didn't see your question?

Click here for a full list of frequently asked questions.
