30|DH Carbon

Carbon DH wheels built for and raced by the Santa Cruz Syndicate, with proven strength, precision, and a lifetime guarantee.
Wheel Size
Hub
Freehub - Rotor

Select Hubs

£1,899.00 GBP

Added To Your Cart:

Cart
Subtotal

You May Also Like...

30|DH Carbon

£1,899.00 GBP
Buy Now

Description

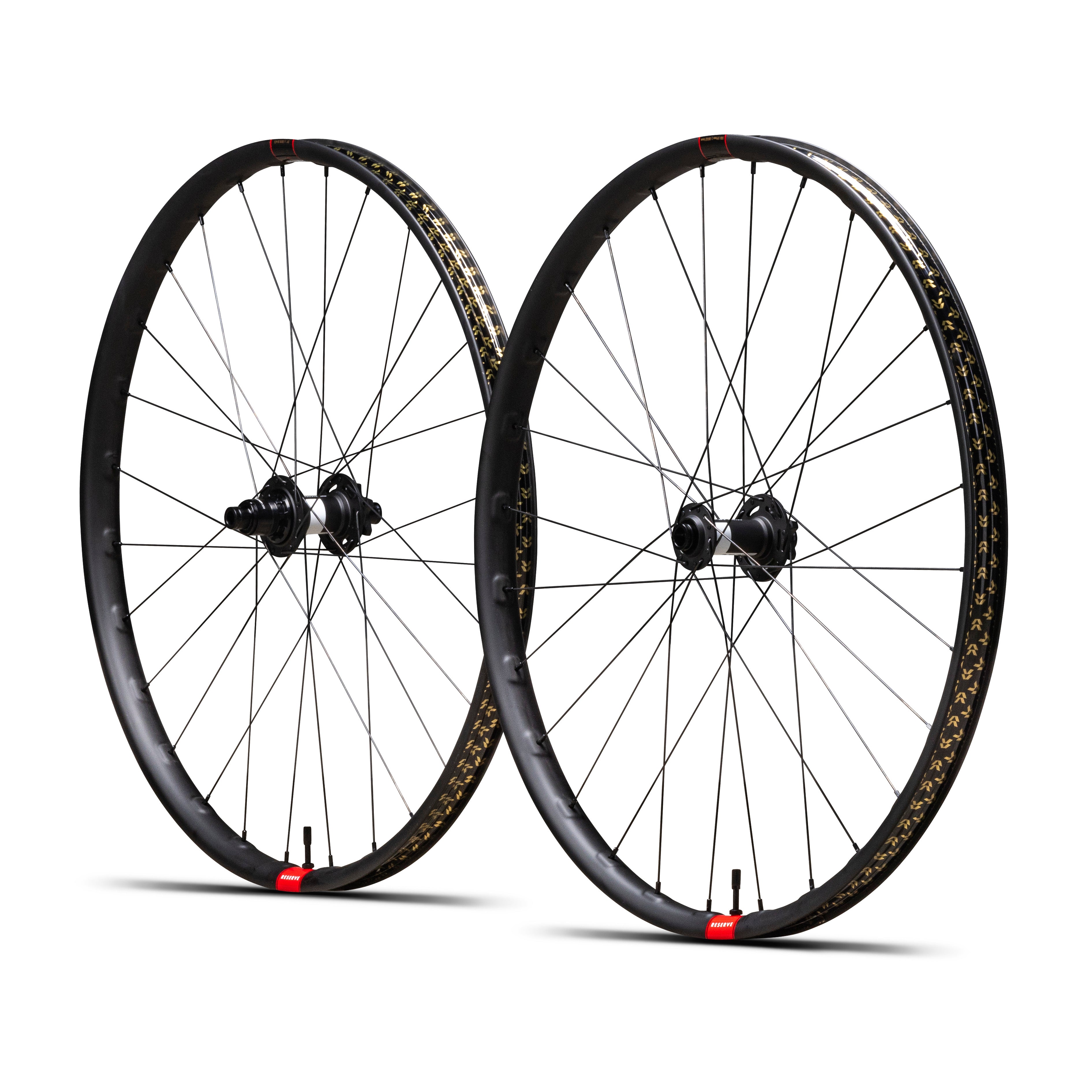

The all-new Reserve 30|DH - a wheelset built to withstand the biggest hits, the toughest terrain, and the most demanding downhill tracks in the world. Designed with direct input from the Santa Cruz Syndicate and tested at Red Bull Hardline events and World Cup DH races, 30|DH wheels deliver the strength, reliability, and precision handling you need to push your limits.

These wheels are built to take on everything from race runs to bike park laps. A redesigned carbon layup delivers increased impact resistance, and a refined profile improves compliance. If you’re looking for unparalleled durability without sacrificing speed, Reserve 30|DH are ready to drop in.

See Full Specs

Lifetime Warranty

All Reserve wheels are built around a simple principle: we have your back. That means no rider weight limits, an industry-leading Lifetime Warranty, safe semi-hooked rim designs and comprehensive customer service.

We are riders like you and we know that breaking a wheel or damaging a Fillmore Valve can be a frustrating experience, especially when it’s keeping you from getting out on your bike. Our promise to you is that we will do our best to get you back riding as quickly as possible. It’s the reason we have made ourselves available through email, chat or by scheduling a video call. We want to be here when you need us most.

Learn more or submit a warranty claim here.

What's in the Box

  • 1x Complete wheelset
  • 34mm Reserve Rim Tape (installed)
  • 2x 50mm Fillmore Tubeless Valves (un-installed)
  • User Manual

Product Safety

ASTM Classification: Condition 5

Maximum Tire Pressure: 50 psi (3.4 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

Shipping and Returns

All wheelsets ship for £5.00 and orders under £145 ship for £4.50. We aim to ship orders within 24–48 hours on business days. Once shipped, your order should arrive within 3–5 business days. Orders ship with duties paid, so there are no surprise charges at delivery. New, unridden products can be returned within 60 days. Learn more on our Shipping & Returns page.

01

02

03

010203

Details

Wheel Size

Designed For DH Riding and Racing
Hub Spacing Front: 110 x 20 Rear: 157 x 12
Wheelset Weight 29" DT 350 - 2036g
Rim Weight 29" F 585g - R 645g - 27.5" R 540g
Spoke Count 28 F - 32 R
Inner Width 30mm
External Width 38mm
Rim Depth 20mm
Asymmetric Offset 3.6mm
ERD 29" 599mm - 27.5" 558mm
Recommended Tire Dimensions 2.5"
E-Bike Approved Yes

FAQ

What's with the raised square-shaped area around the spokes?

That's material right where you need it. With information from testing in our carbon lab in hand, we set about determining how to build the strongest rim possible, and part of the result is the square-shaped reinforcements you can see around the spoke holes.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

We do not currently offer wheelbuilding services, but we do offer rim-only options so you can have your dream wheels built by an experienced wheelsmith.

Where can I find more tech spec information?

Click here for more tech specs information.

Looking for wheel building info?

Click here for wheel building tech sheet.

Didn't see your question?

Click here for a full list of frequently asked questions.
