Sale
28|XC
28|XC
Mountain

28|XC

Race-ready carbon XC wheels. Lighter, stronger, and backed by a lifetime guarantee.
Wheel Size
Hub
Freehub - Rotor

Select Hubs

£1,899.00 GBP

Added To Your Cart:

Cart
Subtotal

You May Also Like...

28|XC

£1,899.00 GBP
Buy Now

Description

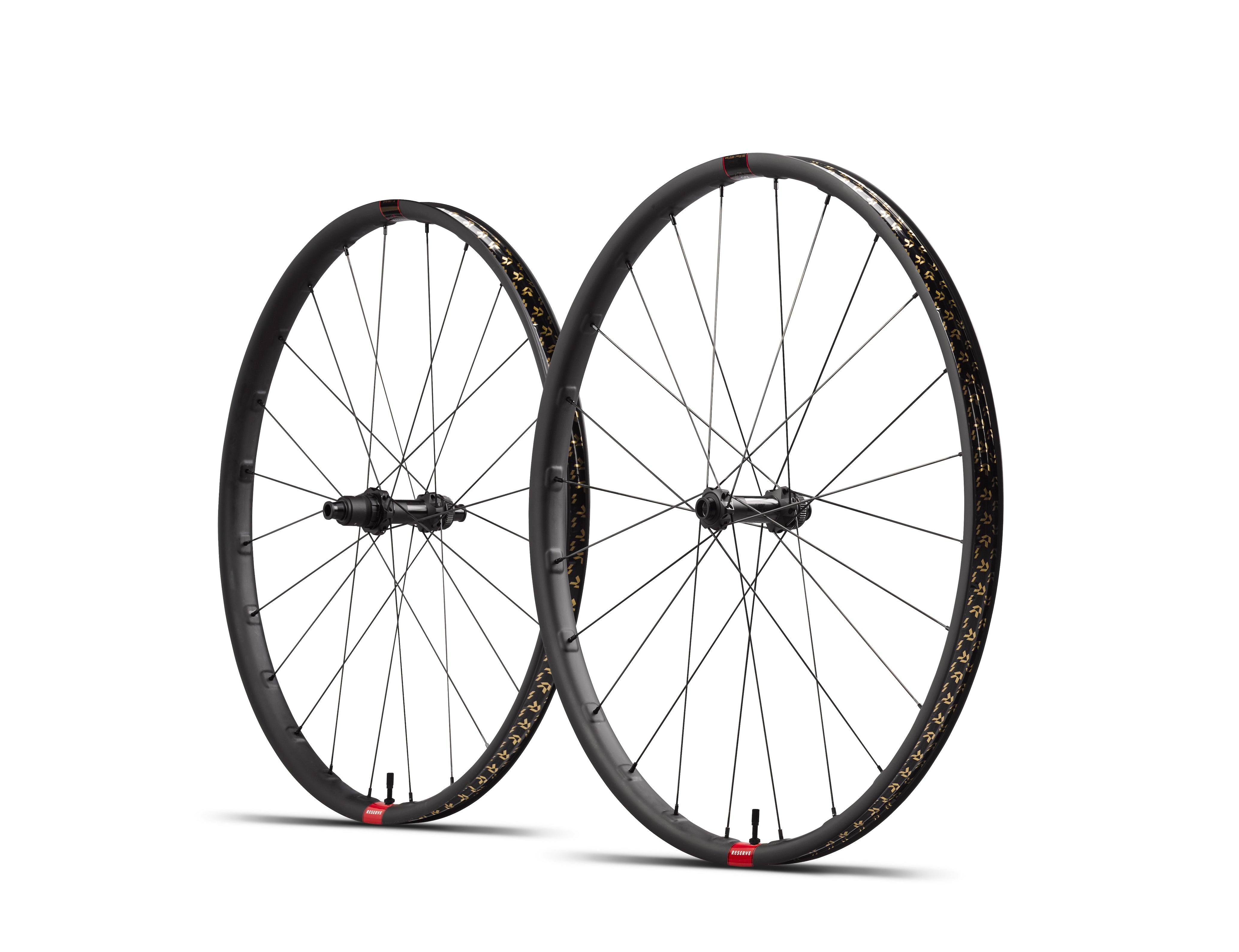

28|XC are the race-ready culmination of everything we’ve learned from years at the highest levels of competition. At 1387g for a complete DT Swiss 180 hub wheelset with tape and valves (AND no rider weight limit and lifetime warranty), 28|XC wheels feature a wider and lower rim profile than our previous XC race wheels, increasing strength and lateral rigidity while adding vertical compliance. The new rim shape also eases tubeless tire installation and improves tire bead retention at lower pressure. 28|XC wheels are sturdy and strong enough for a rowdy XC ride, but light and fast enough for a jaunt on the World Cup XC circuit.

See Full Specs

Lifetime Warranty

All Reserve wheels are built around a simple principle: we have your back. That means no rider weight limits, an industry-leading Lifetime Warranty, safe semi-hooked rim designs and comprehensive customer service.

We are riders like you and we know that breaking a wheel or damaging a Fillmore Valve can be a frustrating experience, especially when it’s keeping you from getting out on your bike. Our promise to you is that we will do our best to get you back riding as quickly as possible. It’s the reason we have made ourselves available through email, chat or by scheduling a video call. We want to be here when you need us most.

Learn more or submit a warranty claim here.

What's in the Box

  • 1x Complete wheelset
  • 32mm Reserve Rim Tape (installed)
  • 2x 50mm Fillmore Tubeless Valves (un-installed)
  • User Manual

Product Safety

ASTM Classification: Condition 3

Maximum Tire Pressure: 50 psi (3.4 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

Shipping and Returns

All wheelsets ship for £5.00 and orders under £145 ship for £4.50. We aim to ship orders within 24–48 hours on business days. Once shipped, your order should arrive within 3–5 business days. Orders ship with duties paid, so there are no surprise charges at delivery. New, unridden products can be returned within 60 days. Learn more on our Shipping & Returns page.

01 Spoke Reinforcements

02 Redesigned Rim Bed

03 Asymmetrical Design

01Spoke Reinforcements02Redesigned Rim Bed03Asymmetrical Design

Spoke Reinforcements

Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

Redesigned Rim Bed

The 28|XC's redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.

Asymmetrical Design

Asymmetrical rims front and rear make for a stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.

Details

Wheelset Weight DT 180 - 1387g DT 240 - 1433g DT 350 - 1491 g Single Rim - 385g
ERD 597
Designed For XC Riding and racing
Inner Width 28mm
Depth 20mm
Recommended Tire Dimensions 2.2 to 2.5
Spoke Count 24

FAQ

What's with the raised square-shaped area around the spokes?

That's material right where you need it. With information from testing in our carbon lab in hand, we set about determining how to build the strongest rim possible, and part of the result is the square-shaped reinforcements you can see around the spoke holes.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

We do not currently offer wheelbuilding services, but we do offer rim-only options so you can have your dream wheels built by an experienced wheelsmith.

Where can I find more tech spec information?

Click here for more tech specs information.

Looking for wheel building info?

Click here for wheel building tech sheet.

Didn't see your question?

Click here for a full list of frequently asked questions.
