Reserve 22|GR

Description

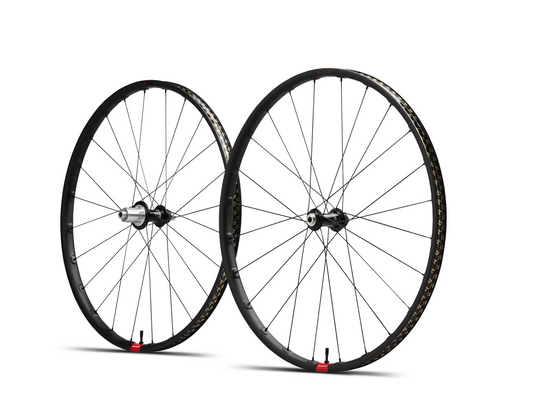

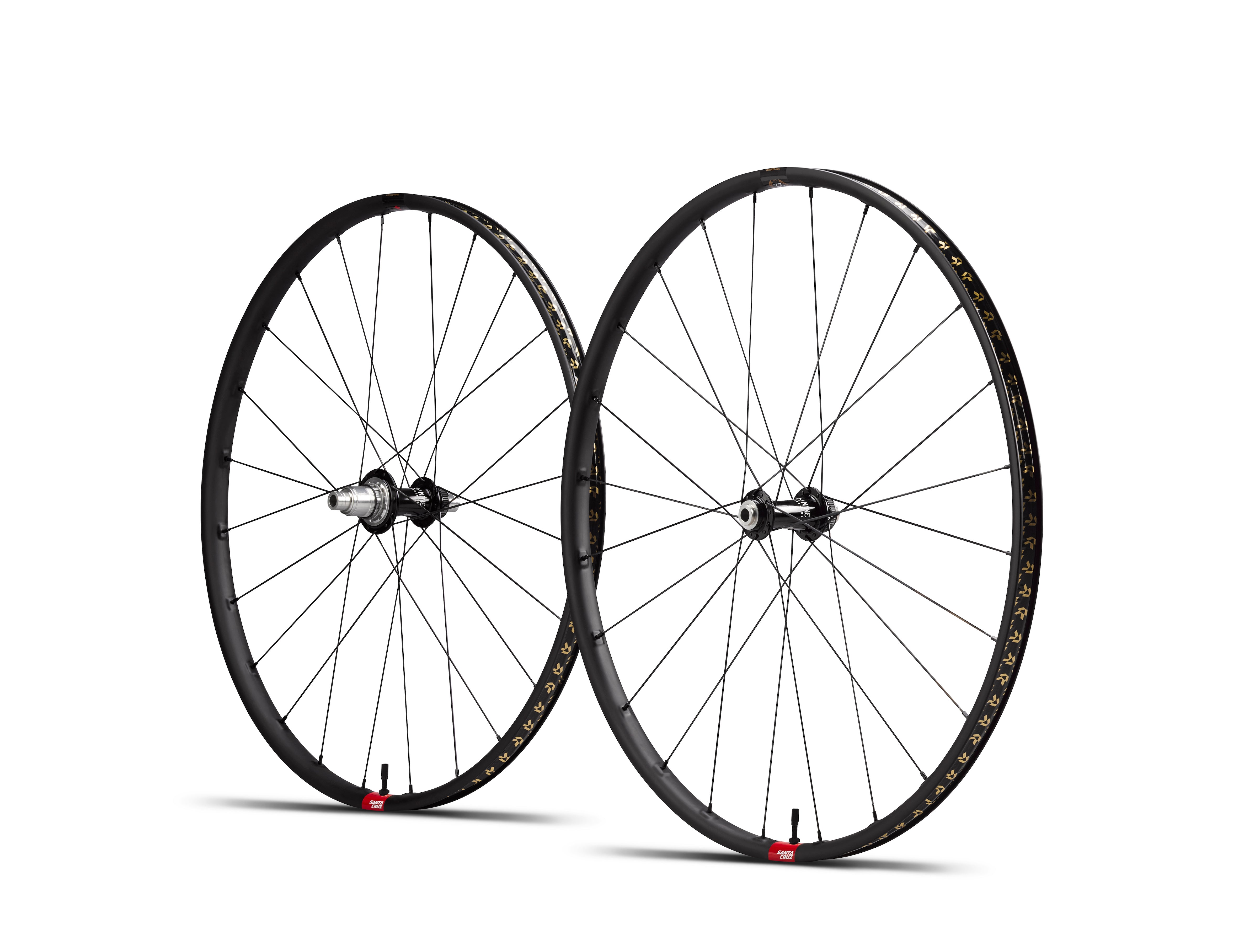

Enjoy the simple pleasures of getting off-road on your drop bar rig with the Reserve 22|GR. These premium carbon wheels are designed to handle anything you can throw at them, this gravel-specific wheelset provides compliance over harsh surfaces with the lateral stiffness to make every effort count. Capable of fitting tires up to 45c, the 22mm internal-width rims allow you to run a wide range of tires and tire pressure to provide unparalleled versatility.

See Full Specs

01 Spoke Reinforcements

02 Shaped Rim Bed

03 Asymmetrical Design

01Spoke Reinforcements02Shaped Rim Bed03Asymmetrical Design

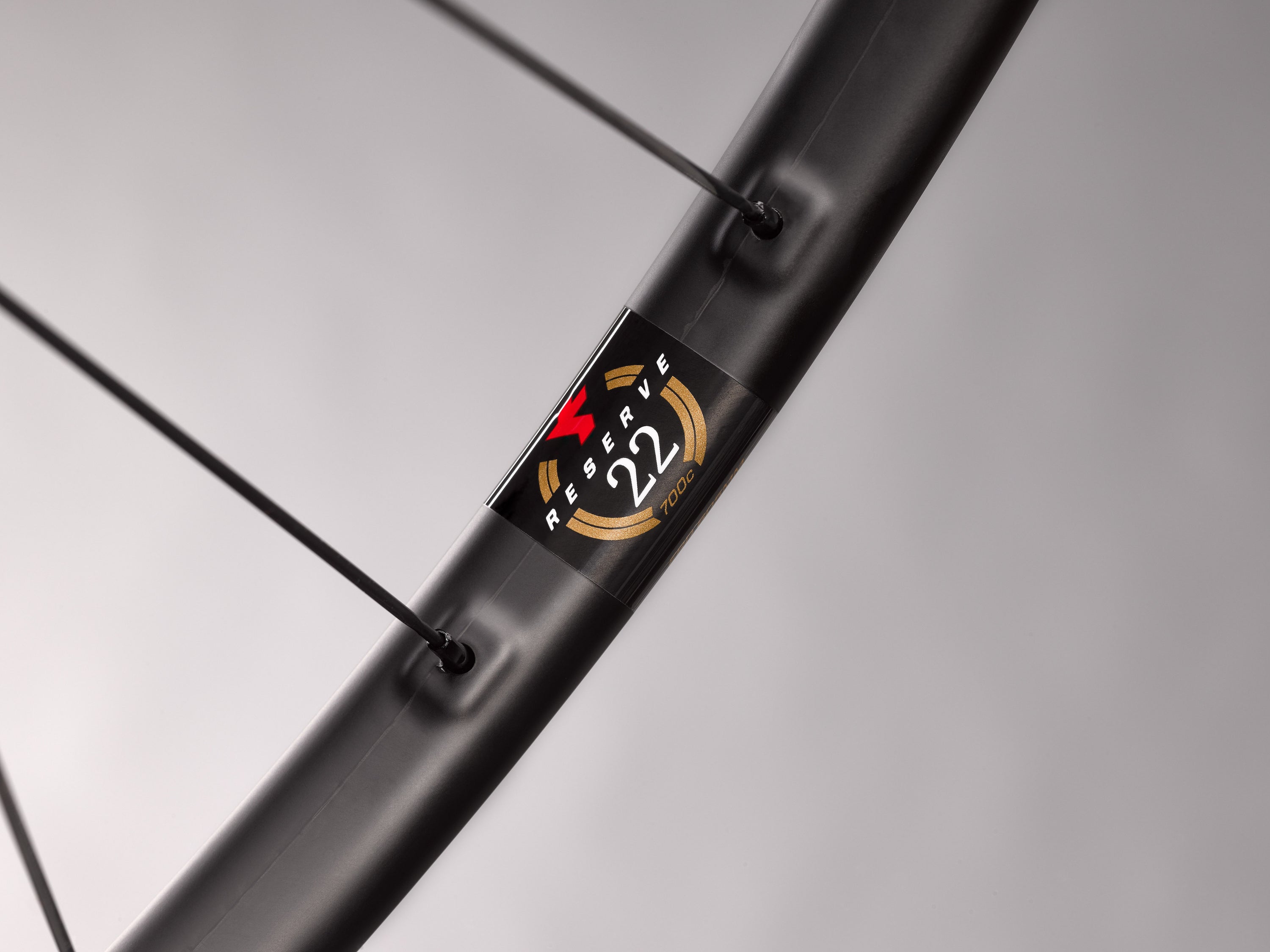

Spoke Reinforcements

Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

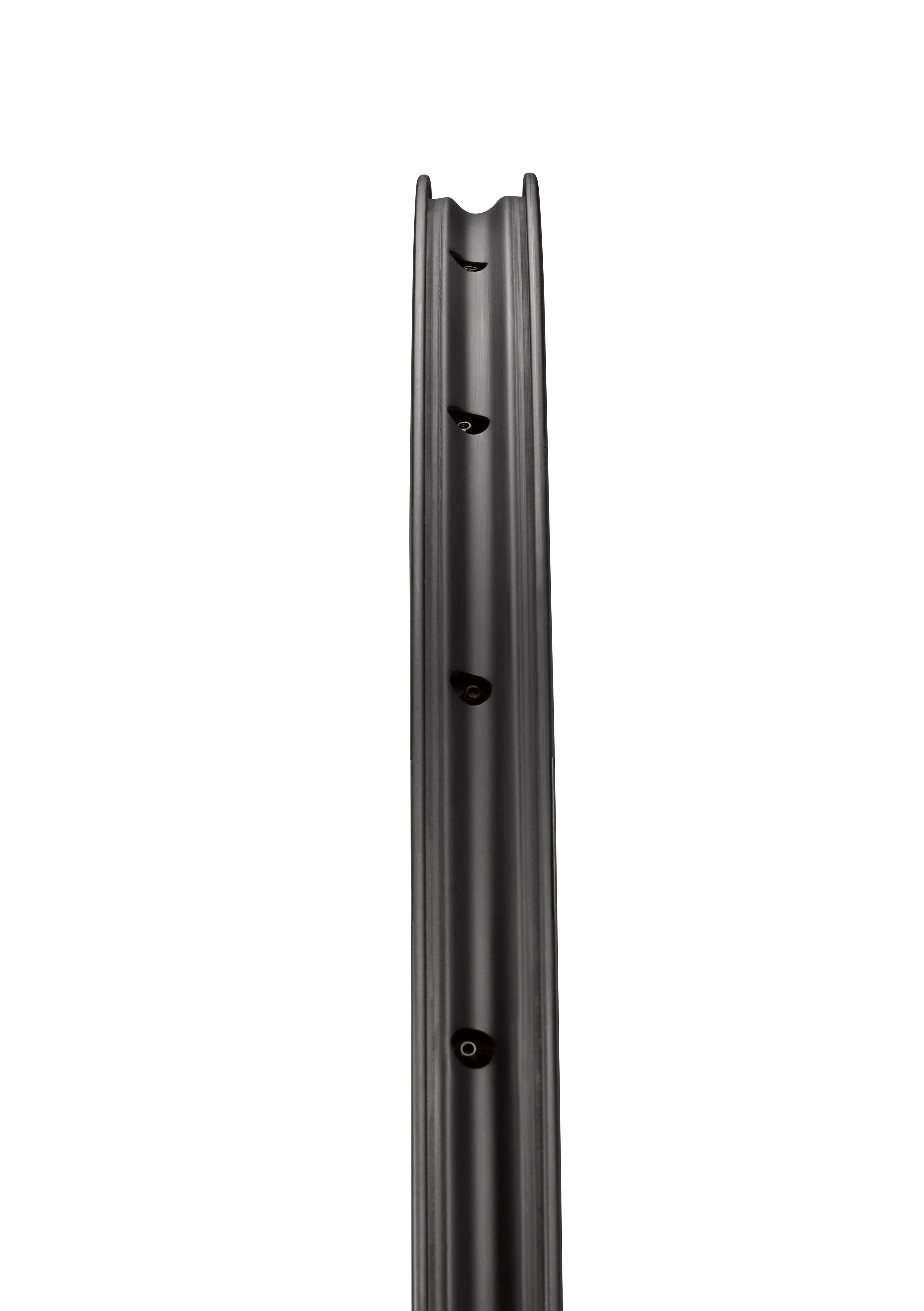

Shaped Rim Bed

The 22|GR's rim bed shape eases tubeless installation, utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.

Asymmetrical Design

Asymmetrical rims front and rear make for a stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.

Details

Wheelset Weight DT350 - 1,398g Industry 9 Torch - 1379g Single Rim - 364g
ERD 605
Designed For Gravel riding and racing
Inner Width 22mm
Depth 17mm
Recommended Tire Dimensions 30-45c
Spoke Count 24
Hub Spacing 100mm/142mm
Disc Style Options Centerlock
Freehub Options XDR, HG-EV
